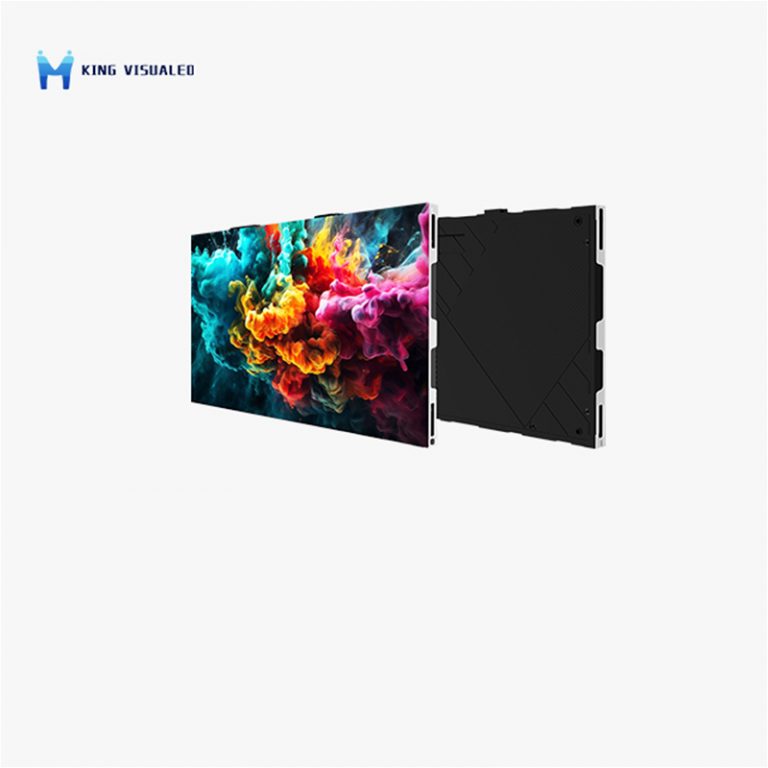

KI HD LED VIDEO WALL

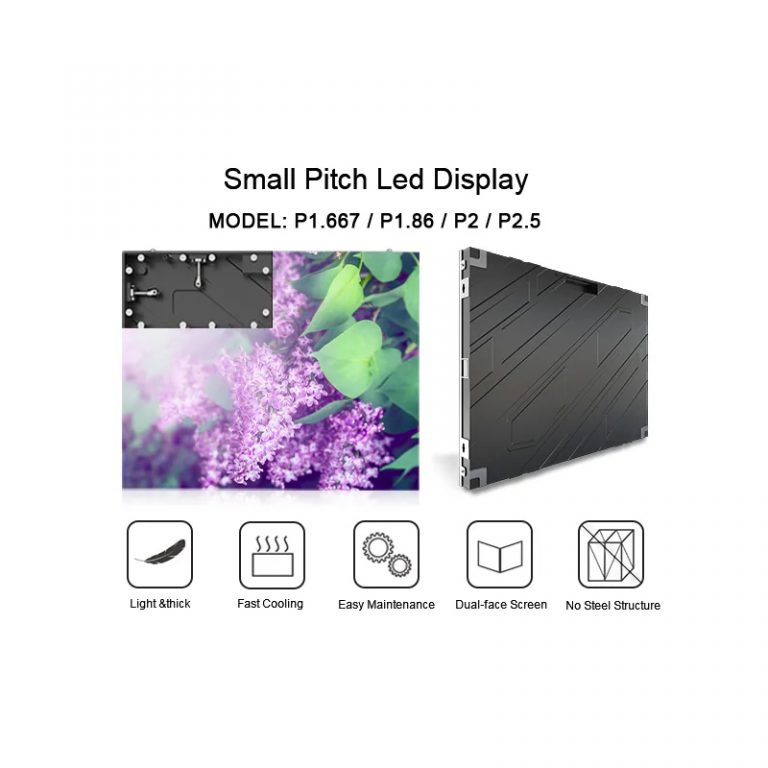

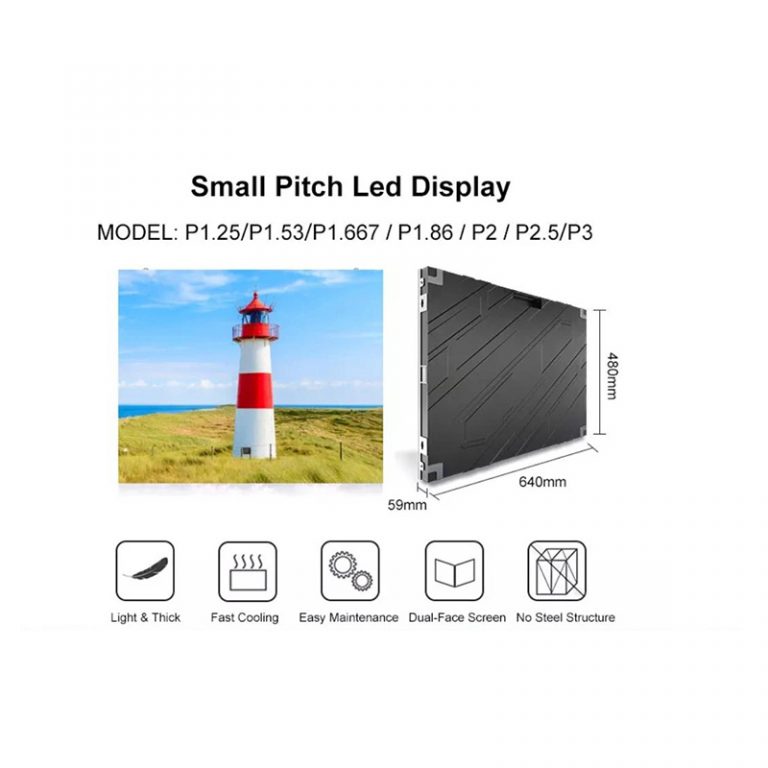

UHD Small Pixel Pitch LED Display

KI HD LED VIDEO WALL

1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc
2. Installation: Mounted-wall, standing on the floor. hanging etc
3. Connection:Connected to your computer, Camera or own equipment.
4. Maintenance: Front service help you save labour and maintenance cost

Chat Now

Product Details

KI HD LED VIDEO WALL

1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc

2. Installation: Mounted-wall, standing on the floor. hanging etc

3. Connection:Connected to your computer, Camera or own equipment.

4. Maintenance: Front service help you save labour and maintenance cost

Model Name	MIN2.5	MIN2.0	MIN1.8	MIN1.6	MIN1.5	MIN1.2
Pixel Pitch	2.5mm	2.0mm	1.86mm	1.667mm	1.538mm	1.25
Pixel Density/㎡	160,000 dots	250,000 dots	422,472dots	360,000 dots	422,753 dots	640000 dots
LED Configuration	SMD2121	SMD1515	SMD1515	SMD1010	SMD1010	MiniLED
Module Size	320*160mm	320*160mm	320 * 160mm	320* 160mm	320 * 160mm	320*160mm
Module Resolution	256*192 dots	160* 80 dots	172* 86 dots	192* 96 dots	208 * 104 dots	256*128 dots
Panel Dimension	640*480	640*480	640*480	640*480	640*480	640*480
Panel Resolution	320*240 dots	320*240 dots	344*258 dots	384*288 dots	416*312 dots	512*384 dots
Panel Weight	7 Kg	7 Kg	6.8 Kg	6.8 Kg	6.8 Kg	6.8KG
Driving Mode	1/32	1/40	1/43	1/48	1/52	1/64
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840
Brightness	≥ 1000 cd/㎡	≥ 1000 cd/㎡	≥ 1000 cd/㎡	≥ 1000 cd/㎡	≥1000 cd/㎡	≥ 1000 cd/㎡
Maintenance method	Front/back services
Protection grade	IP43
Operating temperature/Humidity	-40℃~+60℃
Input voltage	110-220V AC±10%
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system	PCTV+DVI video card+control card+fiber
Life Time	>100,000 Hours
