KV Indoor Fixed Led Screen
1,The screen size can be customized according to the 250x250mm module:
500x500mm/750x500mm/1000x500mm/1000x250mm,a variety of sizes to meet your screen size needs.

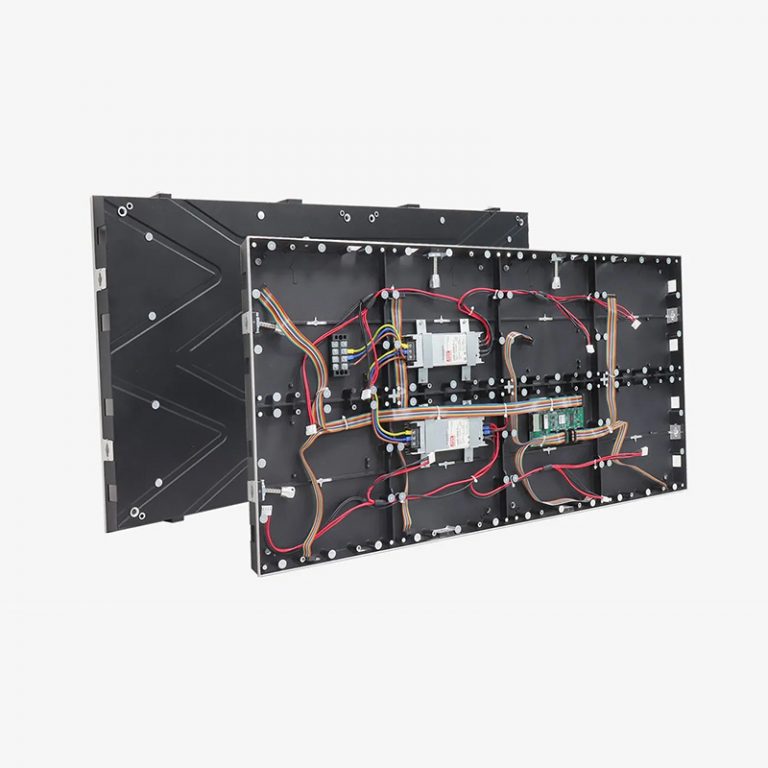

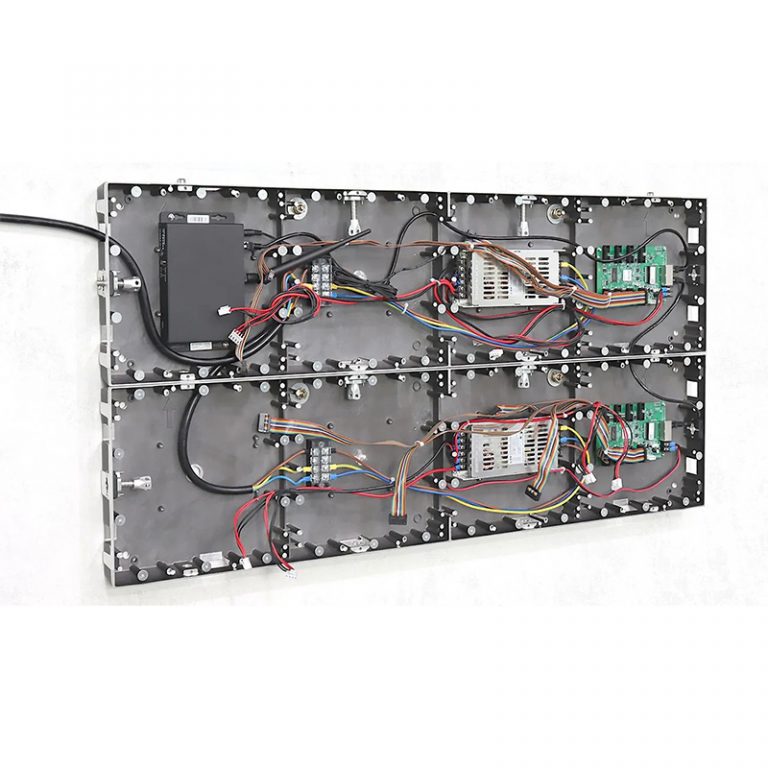

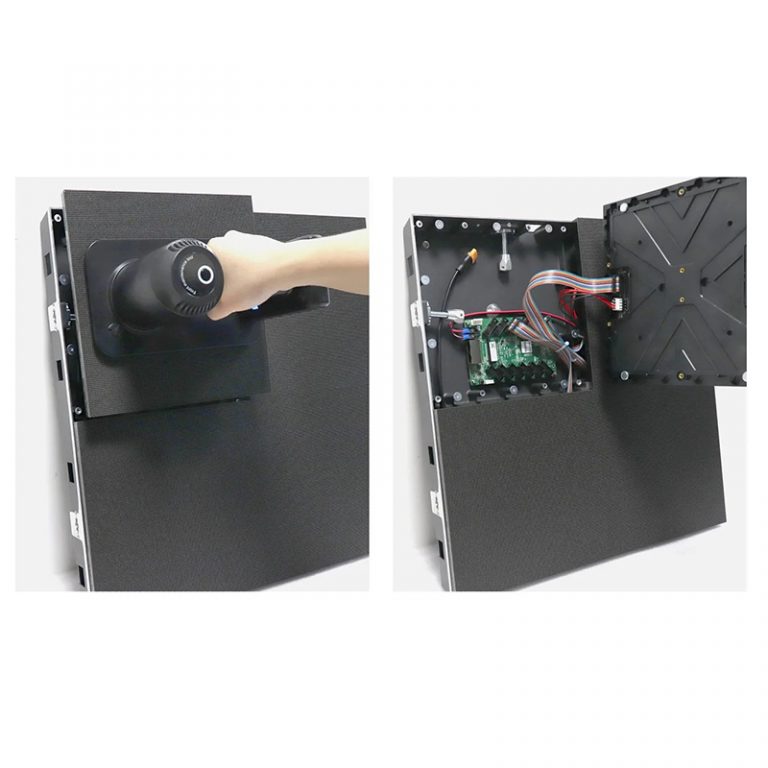

2,Front Service,Perfect Cabinet Structure,Slim Wall Cabinet 54mm ,

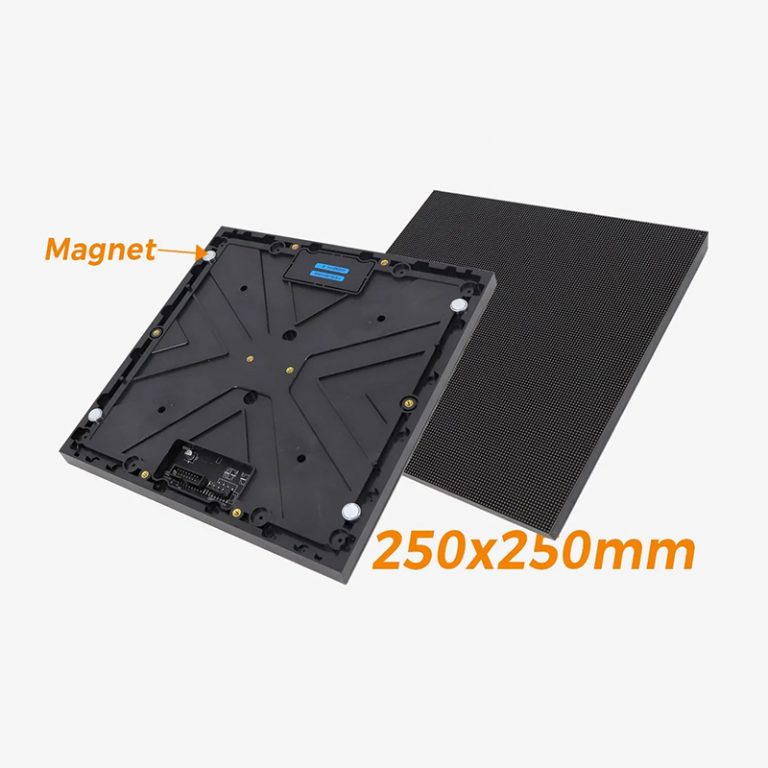

3, Suitable For 250x250mm Standard Size Modules
4, Quick Installation
KV Indoor Fixed Led Screen
1,The screen size can be customized according to the 250x250mm module:
500x500mm/750x500mm/1000x500mm/1000x250mm,a variety of sizes to meet your screen size needs.
2,Front Service,Perfect Cabinet Structure,Slim Wall Cabinet 54mm ,
3, Suitable For 250x250mm Standard Size Modules
4, Quick Installation
| Pixel Pitch (mm) | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |
| Model | EA250W-P1.95 | EA250W-P2.6 | EA250W-P2.97 | EA250W-P3.91 | EA250W-P4.81 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 262,144 | 145,456 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | /1/16 | 1/13 |
| Cabinet Size (mm) | 1000×250 * | 1000×250 * | 1000×250 * | 1000×250 * | 1000×250 * |
| Cabinet Weight (KG) | 6 | 6 | 6 | 6 | 6 |
| Brightness (CD/㎡) | ≥1200 | ≥1200 | ≥1,000 | ≥1,200 | ≥1,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,00 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
