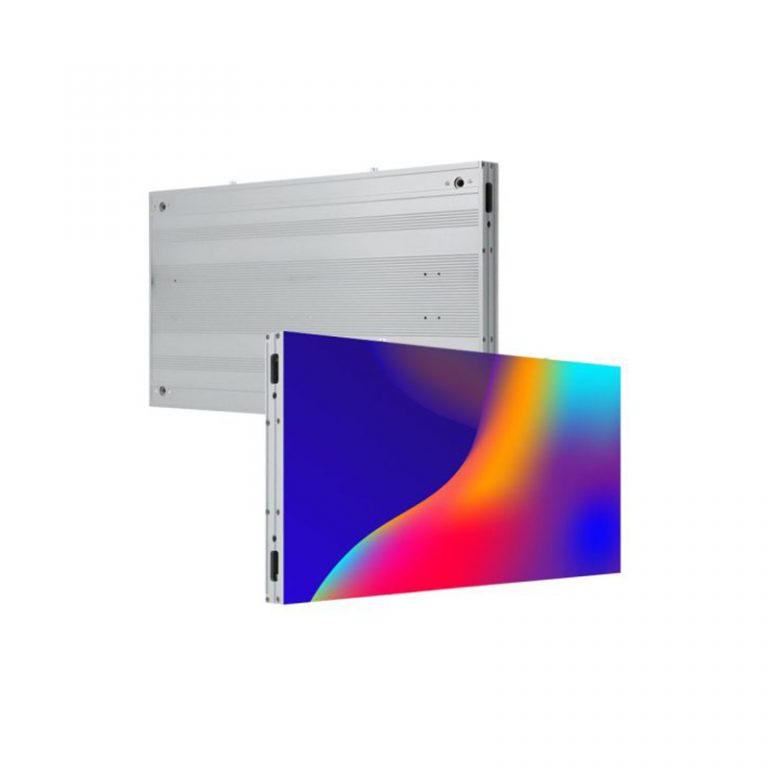

Front Service Indoor LED Video Wall
Can be mounted on the wall
Hard connection design
90° right-angle seamless splicing

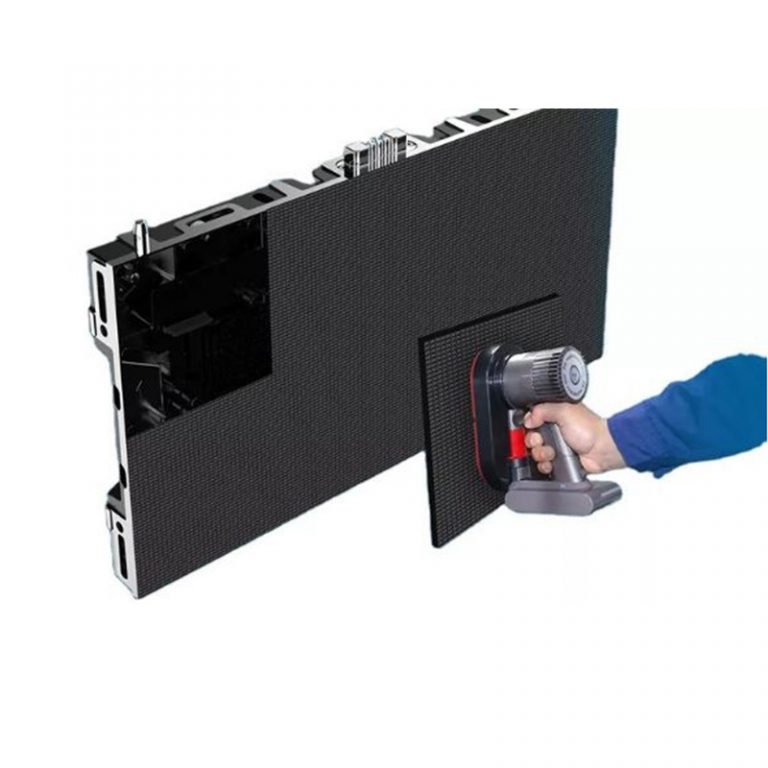

Full front service design
3840Hz high refresh rate
Available sizes: 500x250mm, 750x250mm, 1000x250mm
31mm super thin and ultra-light cabinet
Wide viewing angle, no reflection
Front Service Indoor LED Video Wall
Can be mounted on the wall
Hard connection design
90° right-angle seamless splicing
Full front service design
3840Hz high refresh rate
Available sizes: 500x250mm, 750x250mm, 1000x250mm
31mm super thin and ultra-light cabinet
Wide viewing angle, no reflection
| Front Service Indoor Wallpaper LED Screen Parameter | ||||||
| Pixel Pitch (mm) | P1.5 | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 |
| Model | P1.5 | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 |
| Pixel Configuration | SMD1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet Size (mm) | 500/750/1000×250 | 500/750/1000×250 | 500/750/1000×250 | 500/750/1000×250 | 500/750/1000×250 | 500/750/1000×250 |
| Cabinet Weight (KG) | 2.9/4.5/5.8 | 2.9/4.5/5.8 | 2.9/4.5/5.8 | 2.9/4.5/5.8 | 2.9/4.5/5.8 | 2.9/4.5/5.8 |
| Brightness (CD/㎡) | 600 | 800 | 800 | 800 | 800 | 1000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Operation Power | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Max. Power Consumption (W/㎡) | 650 | 650 | 650 | 650 | 650 | 650 |
| Avg. Power Consumption (W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Frame Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,00 | 100,00 | 100,00 | 100,00 | 100,00 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
