| Indoor COB LED Screen Parameter | ||||
| Pixel Pitch (mm) | P0.78 | P0.93 | P1.25 | P1.56 |
| Model | P0.78 | P0.93 | P1.25 | P1.56 |

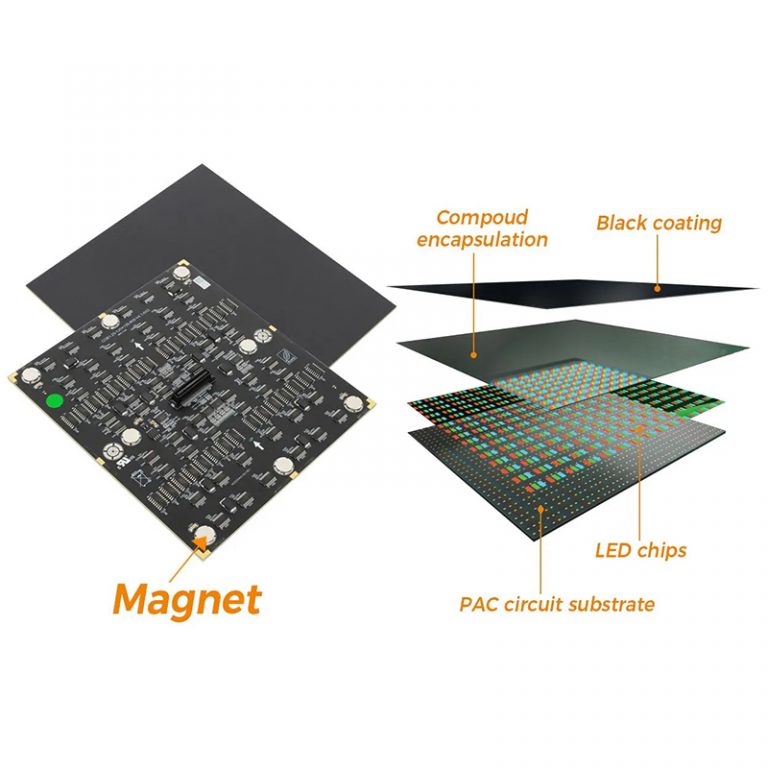

| Pixel Configuration | Flip-chip COB | Flip-chip COB | Flip-chip COB | Flip-chip COB |
| Density (Pixels/㎡) | 1638400 | 1130000 | 640000 | 409600 |
| Module Resolution (Pixel) | 192×216 | 160×180 | 120×135 | 96×108 |
| Module Size (mm) | 150×168.75 | 150×168.75 | 150×168.75 | 150×168.75 |
| Driving Mode (Duty) | 1/54 | 1/60 | 1/45 | 1/54 |

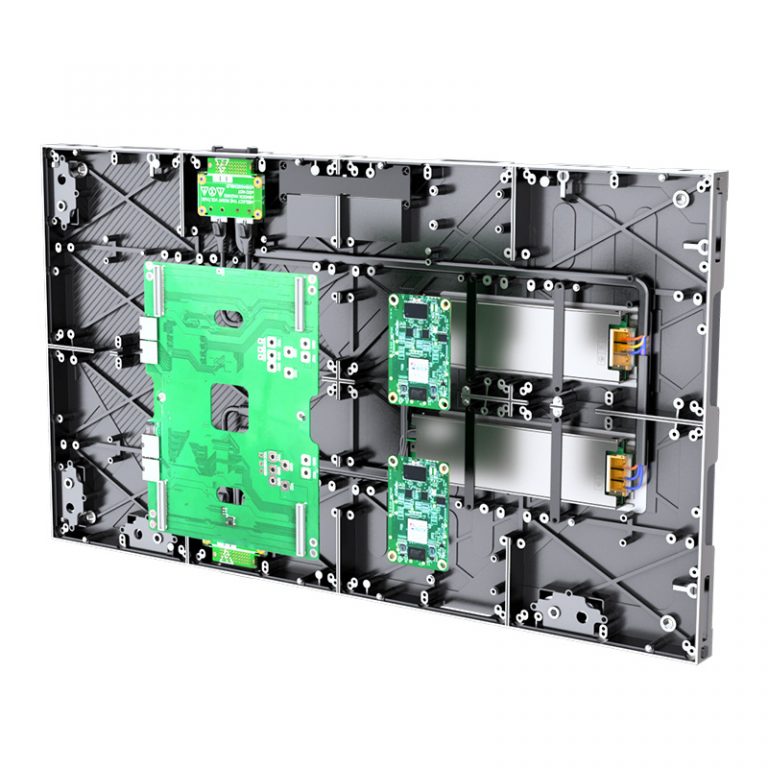

| Cabinet Size (mm) | 600×337.5 | 600×337.5 | 600×337.5 | 600×337.5 |
| Cabinet Weight (KG) | 5.1 | 5.1 | 5.1 | 5.1 |
| Brightness (CD/㎡) | 500~800 | 500~800 | 500~800 | 500~800 |
| Viewing Angle (°) | 160 | 160 | 160 | 160 |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 500 | 500 | 500 | 500 |
| Avg. Power Consumption (W/㎡) | 165~260 | 165~260 | 165~260 | 165~260 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+50 | -20～+50 | -20～+50 | -20～+50 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP45 | IP45 | IP45 | IP45 |
