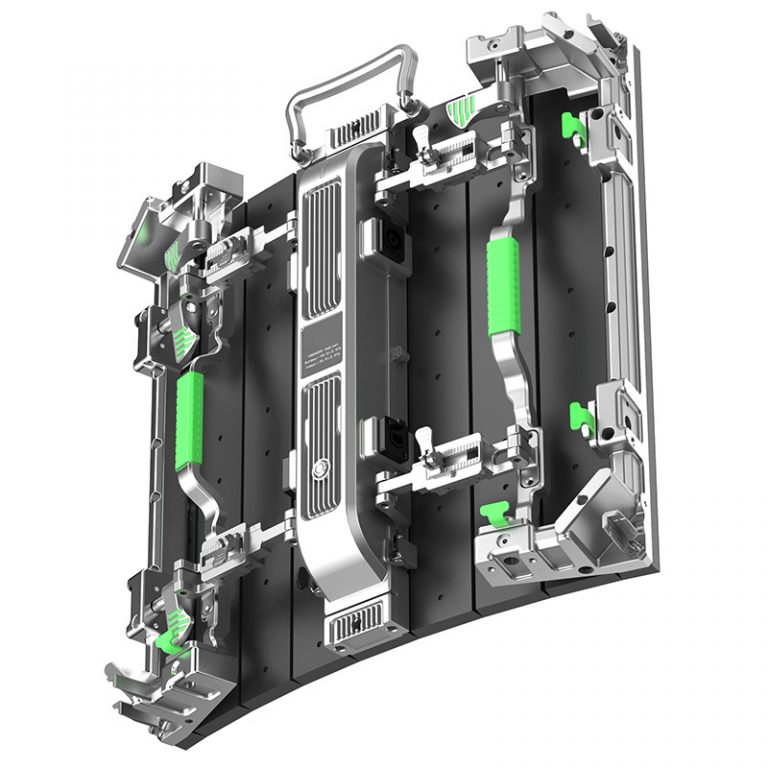

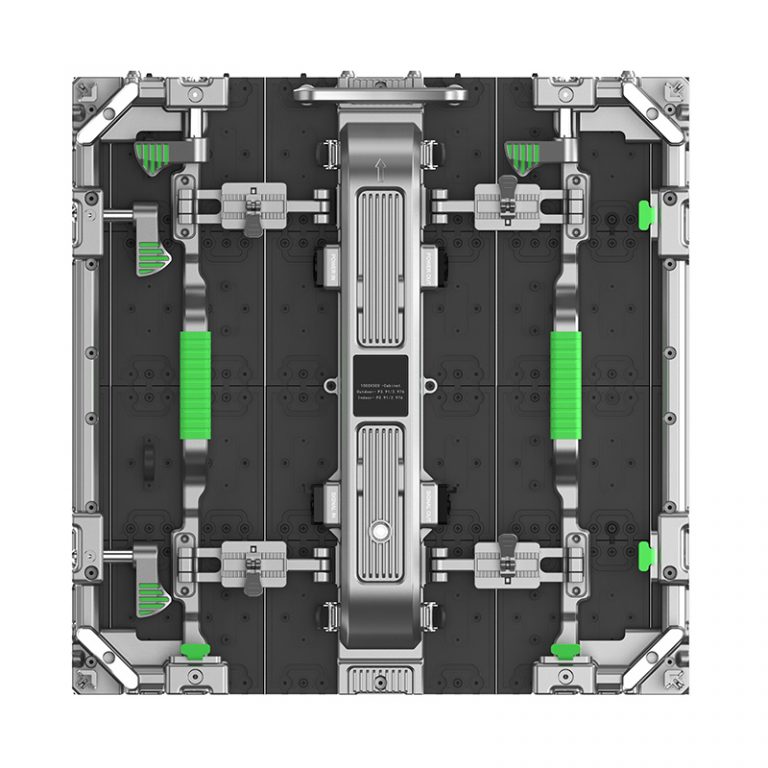

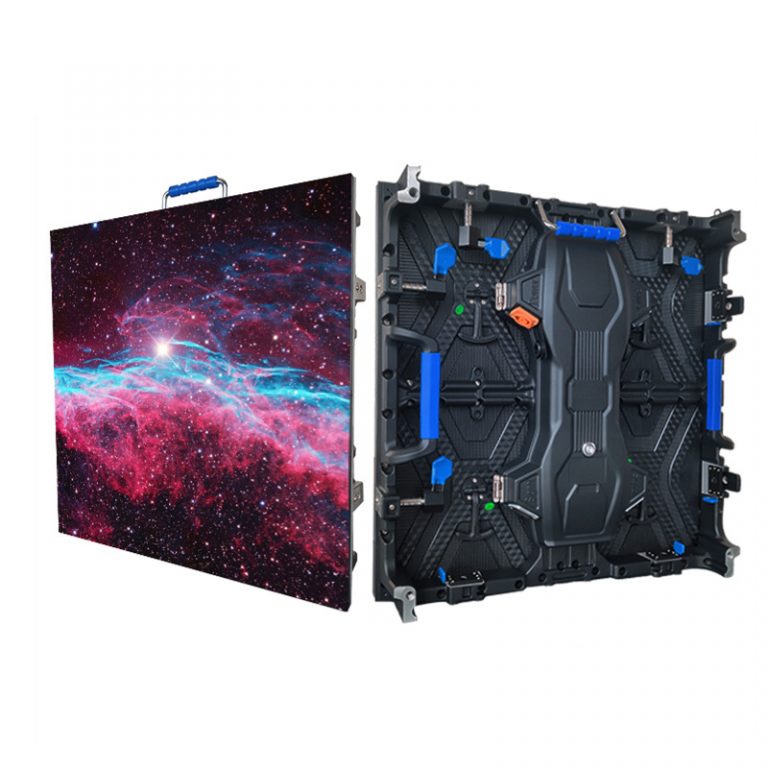

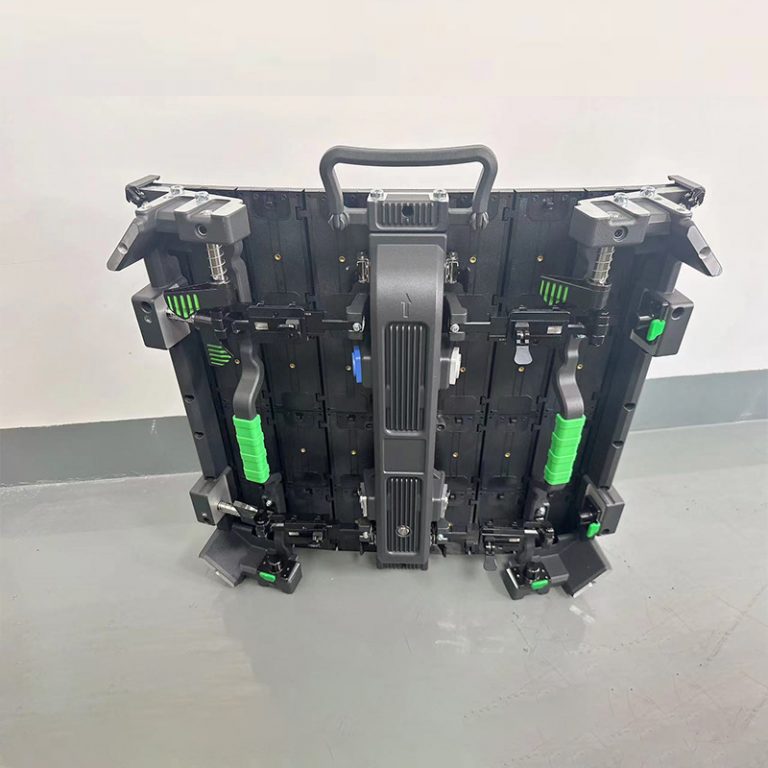

2024 latest flexible curved rental cabinet 500*500mm for S-shape circle shape Inner and outer arc wave type rental LED display
flexible curved rental cabinet 500*500mm function:
1.single unit cabinet .can be adjusted inner and outer 0-45 ° Arc shape .
2.single unit cabinet toturn for 0-22.5 °S-shape.
3.Inner and outer arc wave type or round corner

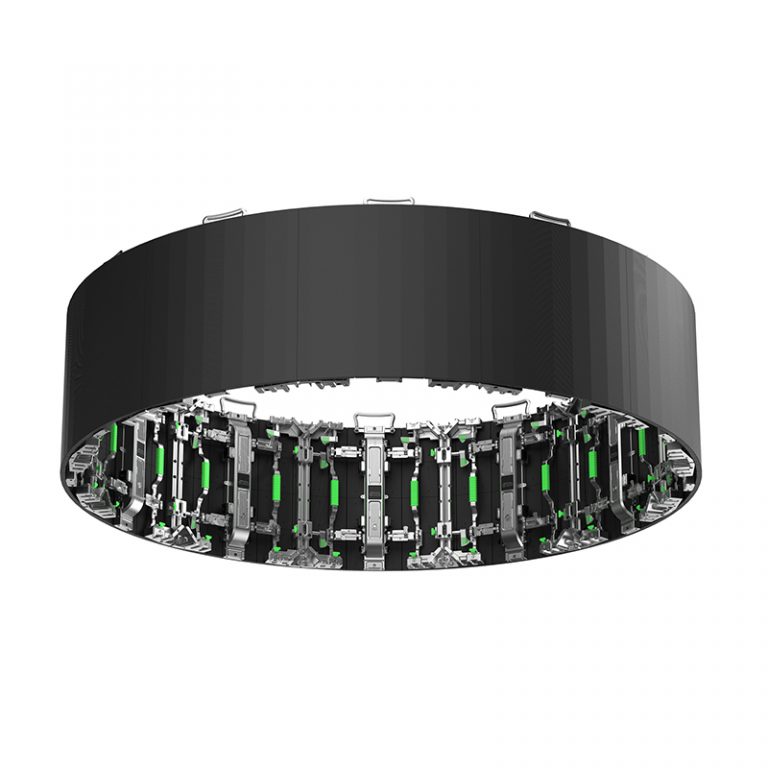

4.only 8 pcs cabinets into a circle shape, the minimum diameter of 1.21 meter
5.single box set 0 degree will be conventional straight screen
6.flexible cabinet can be directly mixed work together with 500*500mm or 500*1000MM conventional straight cabinet /arc lock /90 degree right Angle panel
| ITEM | INDOOR | OUTDOOR | ||||||
| Pixel Pitch | P1.925-IN +GOB | P2.604-IN | P2.976-IN | P3.91-IN | P2.604-OU | P2.976-OU | P3.91-OU | P4.81-OU |
| LED lamp | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density/m2 | 262144dots | 147456dots | 112896dots | 65536dots | 147456dots | 112896dots | 65536dots | 43264dots |
| Brightness | 1200nits | 1200nits | 1200nits | 1200nits | ≥ 4500nits | ≥ 4500nits | ≥ 4500nits | ≥ 4500nits |
| IP rating | IP45 | IP45 | IP45 | IP45 | IP65 | IP65 | IP65 | IP65 |
| Scan | 32scan | 24scan | 21scan | 16scan | 24scan | 21scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8.5kg | 8.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Cabinet Size | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm |
| Module pixel | 129*129dots | 96*96dots | 84*84dots | 64*64dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet pixel | 259*259dots | 192*192dots | 168*168dots | 128*128dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Cabinet Materiel | Die-casting Aluminum | |||||||
| Viewing Angle | Horizontal 160(+70/-70) deg Vertical 160(+70/-70)deg | |||||||
| Control way | synchronous/asynchronous | |||||||
| Gray Scale(bit) | 256 level 16 bit | |||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||||
| Work humidity | 10% ~ 90% | |||||||
| Input Voltage(V) | AC 100-240 | |||||||
