KI HD LED VIDEO WALL
1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc

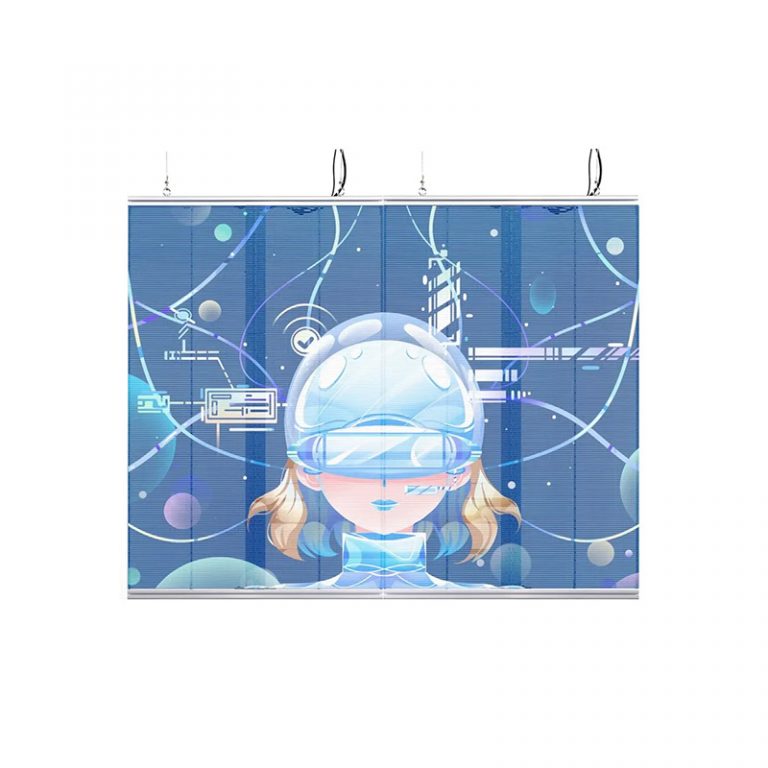

2. Installation: Mounted-wall, standing on the floor. hanging etc
3. Connection:Connected to your computer, Camera or own equipment.
4. Maintenance: Front service help you save labour and maintenance cost
KI HD LED VIDEO WALL
1. Usage: Hotel stage wall, meeting room, monitoring room, Bar entertainment etc
2. Installation: Mounted-wall, standing on the floor. hanging etc
3. Connection:Connected to your computer, Camera or own equipment.
4. Maintenance: Front service help you save labour and maintenance cost
| Pixel Pitch (mm) | P3.91-P7.82 (1500) | P3.91-P7.82 (4000) |
| Pixel Configuration | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 32,768 | 32,768 |
| Module Resolution (Pixel) | 128×16 | 128×16 |

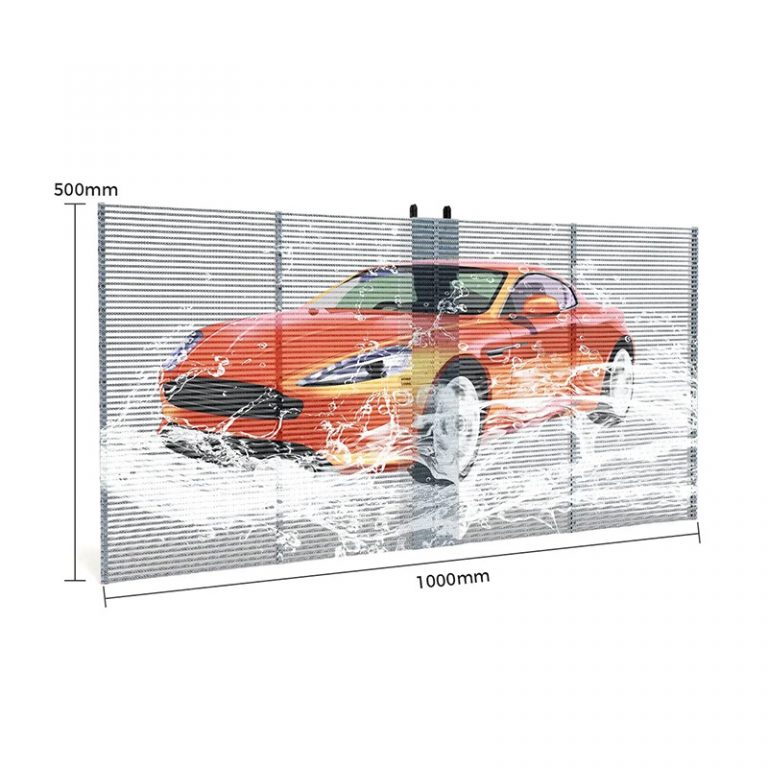

| Module Size (mm) | 500×125 | 500×125 |
| Driving Mode (Duty) | 1/8 | 1/8 |
| Cabinet Size (mm) | 1000×1500 | 1000×2000 |
| Cabinet Weight (KG) | 14.5 | 18 |
| Brightness (CD/㎡) | ≥1500 | ≥4,000 |

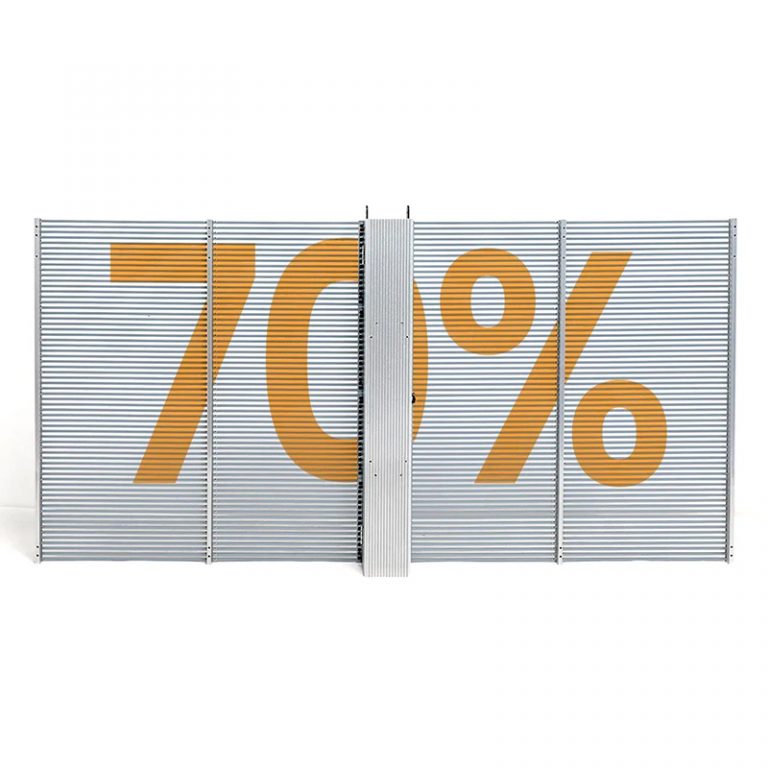

| Transparency | 70 | 70 |
| Viewing Angle (°) | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 220 | 220 |
| Frame Frequency (Hz) | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 |
| Working Temperature (℃) | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 |
At here, it’s all about giving the clients thebest quality products.
