KX VR Event Curve LED Screen
1.Pixel Pitch：Indoor P1.9/ P2.6 / P2.9 / P3.9 Outdoor P2.9 / P3.9 / P4.8

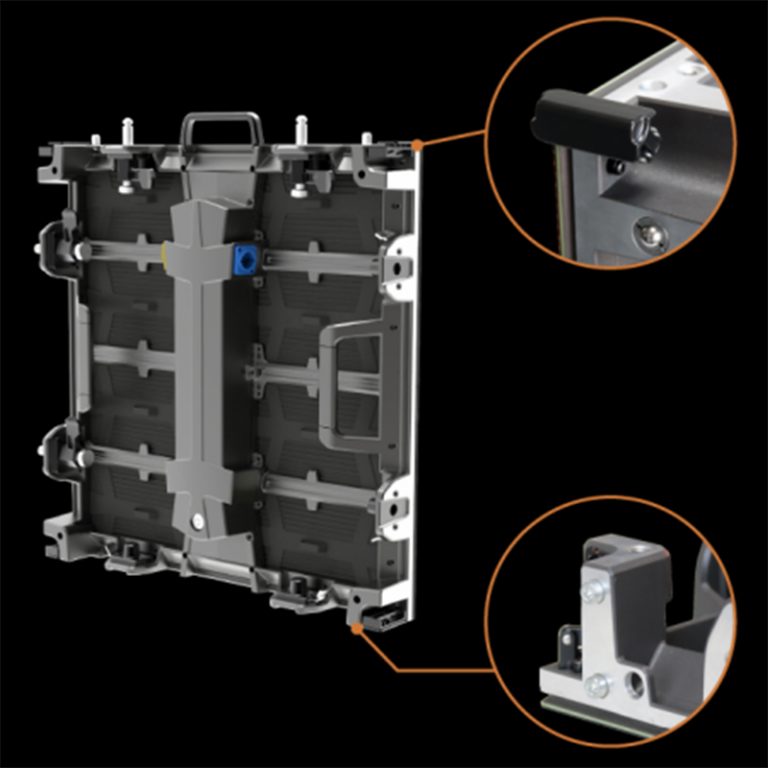

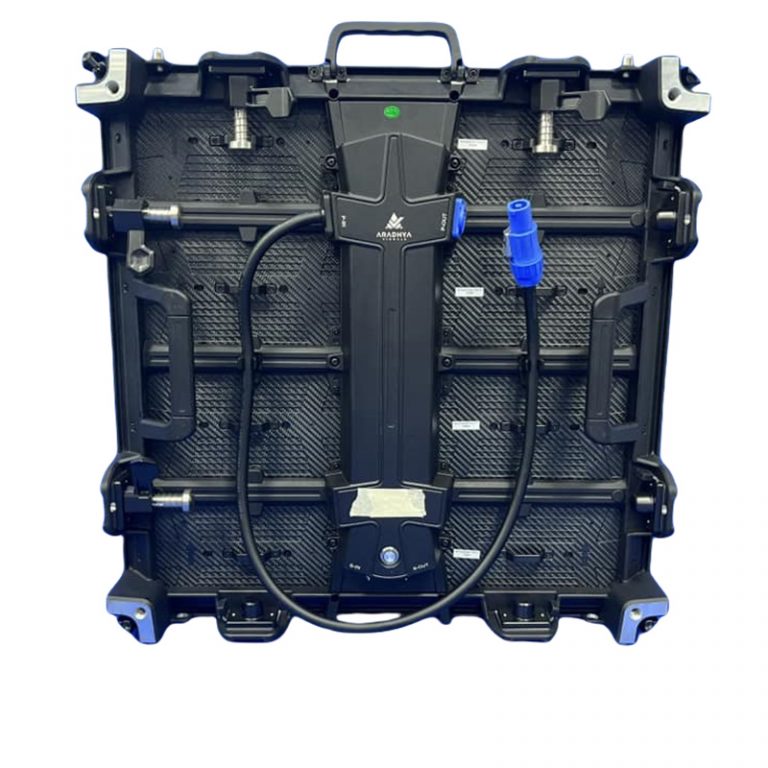

Creative cabinet maximize stage performance
2.PEmbedded design led modules | No gaps or dark lines or bright lines
3.500 x 125mm module size, no cross, Embedded module design, Unique mask design, No bright and dark lines
4.Provides more possibilities for creativity in same led panel: flat, concave & convex, 90 degree corner, cube, combination of flat & curve cabinets, etc
5.Ultra 7680hz ultra high refresh rate,2mm thickness 4 layers PCB enhance good performance
6.Super lightweight and twice the size, perfect for the operation demands of extra large outdoor display applications
KX VR Event Curve LED Screen
1.Pixel Pitch：Indoor P1.9/ P2.6 / P2.9 / P3.9 Outdoor P2.9 / P3.9 / P4.8
Creative cabinet maximize stage performance
2.PEmbedded design led modules | No gaps or dark lines or bright lines
3.500 x 125mm module size, no cross, Embedded module design, Unique mask design, No bright and dark lines
4.Provides more possibilities for creativity in same led panel: flat, concave & convex, 90 degree corner, cube, combination of flat & curve cabinets, etc
5.Ultra 7680hz ultra high refresh rate,2mm thickness 4 layers PCB enhance good performance
6.Super lightweight and twice the size, perfect for the operation demands of extra large outdoor display applications
| ITEM | INDOOR | OUTDOOR | ||||||
| Pixel Pitch | P1.925-IN +GOB | P2.604-IN | P2.976-IN | P3.91-IN | P2.604-OU | P2.976-OU | P3.91-OU | P4.81-OU |
| LED lamp | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density/m2 | 262144dots | 147456dots | 112896dots | 65536dots | 147456dots | 112896dots | 65536dots | 43264dots |
| Brightness | 1200nits | 1200nits | 1200nits | 1200nits | ≥ 4500nits | ≥ 4500nits | ≥ 4500nits | ≥ 4500nits |
| IP rating | IP45 | IP45 | IP45 | IP45 | IP65 | IP65 | IP65 | IP65 |
| Scan | 32scan | 24scan | 21scan | 16scan | 24scan | 21scan | 16scan | 13scan |
| Module weight | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg | 0.5kg |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 8.5kg | 8.5kg | 8kg | 8kg |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm | 500*500*85mm |
| Cabinet Size | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm | 500*1000*85mm |
| Module pixel | 129*129dots | 96*96dots | 84*84dots | 64*64dots | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Cabinet pixel | 259*259dots | 192*192dots | 168*168dots | 128*128dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots |
| Max Power | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 500w/sqm | 550w/sqm | 550w/sqm |
| Average Power | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 160w/sqm | 200w/sqm | 200w/sqm |
| Cabinet Materiel | Die-casting Aluminum | |||||||
| Viewing Angle | Horizontal 160(+70/-70) deg Vertical 160(+70/-70)deg | |||||||
| Control way | synchronous/asynchronous | |||||||
| Gray Scale(bit) | 256 level 16 bit | |||||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||||
| Work humidity | 10% ~ 90% | |||||||
| Input Voltage(V) | AC 100-240 | |||||||
