KR Outdoor Fixed LED Display DOOH Installation Steel Cabinet Billboard:
1. High uniformity display color.
2. rich in content: can display text, graphics, images, animation, video information.

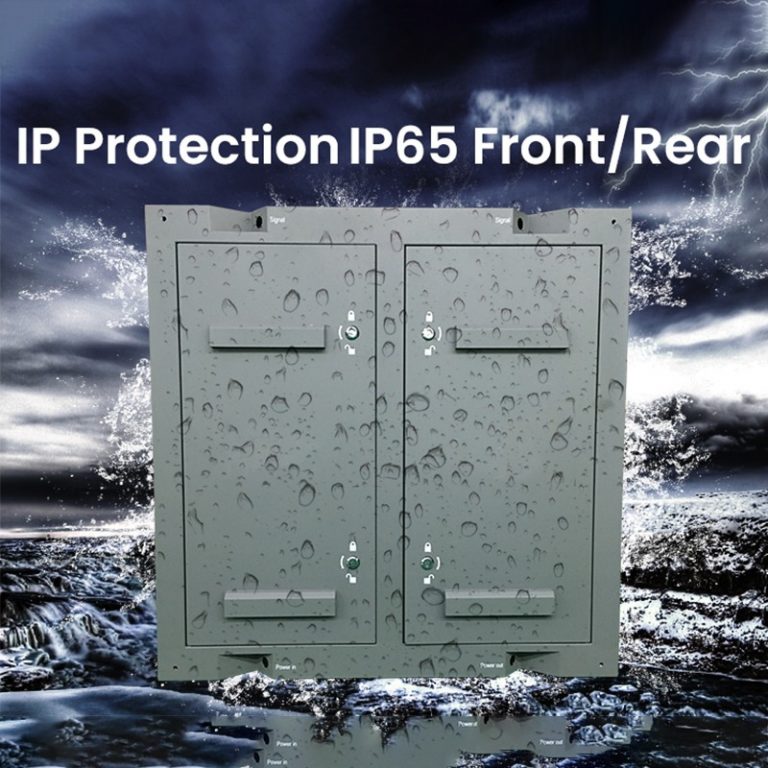

3 IP65 grade for high performance waterproof and dustproof capability.
4. High quality LED chip and high anti-static electricity capacity.
5. Ultra-high brightness, low attenuation, high reliability and weather ability.
6 excellent viewing angle: both horizontal and vertical have a large viewing angle, which is suitable for environments with wide horizontal distribution and large height difference.
KR Outdoor Fixed LED Display DOOH Installation Steel Cabinet Billboard:
1. High uniformity display color.
2. rich in content: can display text, graphics, images, animation, video information.
3 IP65 grade for high performance waterproof and dustproof capability.
4. High quality LED chip and high anti-static electricity capacity.
5. Ultra-high brightness, low attenuation, high reliability and weather ability.
6 excellent viewing angle: both horizontal and vertical have a large viewing angle, which is suitable for environments with wide horizontal distribution and large height difference.
| DOOH Fixed Installation | P2.5 | P3.076 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4 | 5 | 6 | 8 | 10 |
| LED Chips | SMD 1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Pixel density(dots/m2) | 16000 | 105625 | 62500 | 40000 | 27777 | 15625 | 10000 |
| Driving Method | 1/16 scanning | 1/13 scanning | 1/10 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |

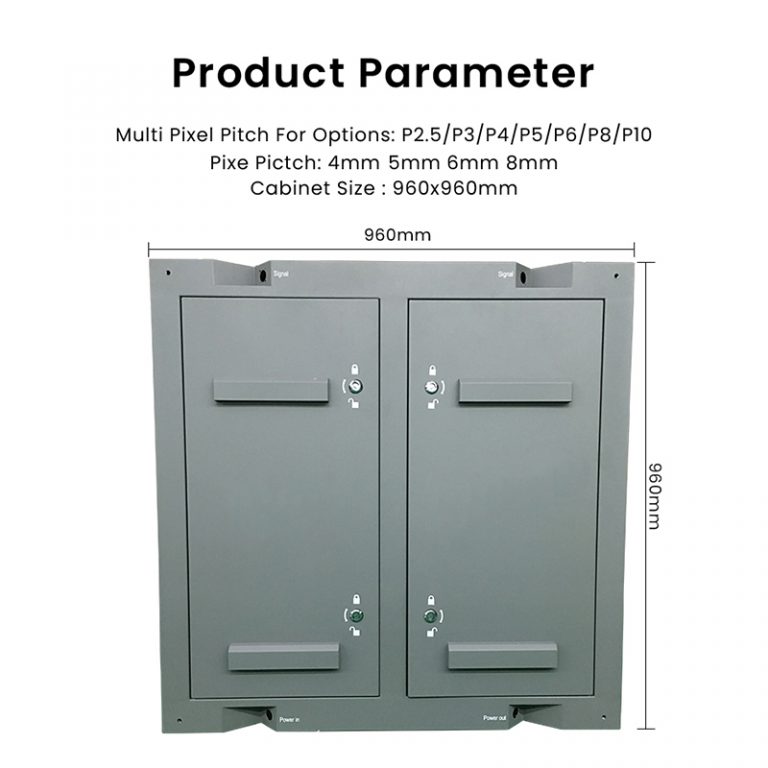

| Cabinet Size( W*L mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Cabinet Material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Cabinet Weight( Kg/m2 ) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Max.Consumption(W/m2) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Ave.Consumption(W/m2) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Brightness( Nits ) | ≥6500 | ≥6500 | ≥6500 | ≥6500 | ≥6500 | ≥6500 | ≥6500 |
| Viewing Angle (Vertical / Horizontal) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
