Do you plan to improve your business area with a strong visual display? This could be for a company meeting room, a busy shop front, or a large outdoor sign. Knowing the expense comes first. People often ask, “How much does an LED video wall cost?” The answer is usually, “It varies.”
At King Visionled, we value clear information. As an experienced LED display maker with more than 15 years in the business, we focus on quality customized visual setups. This guide explains the LED video wall cost per square meter. It covers technical details, and the project needs to help you get the best value for your money.
Core Component: The Technology Behind the Screen
The main part of your video wall—the LED modules—plays the biggest role in the cost per square meter.
Pixel Pitch and Resolution
Pixel pitch means the space between the centers of two pixels. It sets how sharp the screen looks from certain distances.
- Small Pixel Pitch (UHD): Our KU, KI, and KV series (from P0.9 to P1.56) give Ultra-HD sharpness. They suit control centers and upscale shops where people view up close. These need more LEDs per square meter, so prices run higher.
- Standard Indoor/Outdoor: Options like P2.9, P3.91, P8, or P10 work for stage rentals or outdoor ads. Lower pixel density keeps the cost per square meter lower for big viewing areas.
LED Lamp Quality and Brand
The diodes affect how well your setup lasts. King Visionled uses solid gold wire or copper wire LEDs. For outside use, we pick DIP 3-in-1 tech. It provides stronger brightness (up to 7000 nits) and better cooling than basic choices on the market.
Hardware and Structural Costs
The LEDs are just the start. The frame and control parts add to the overall spend.
Cabinet Material and Design

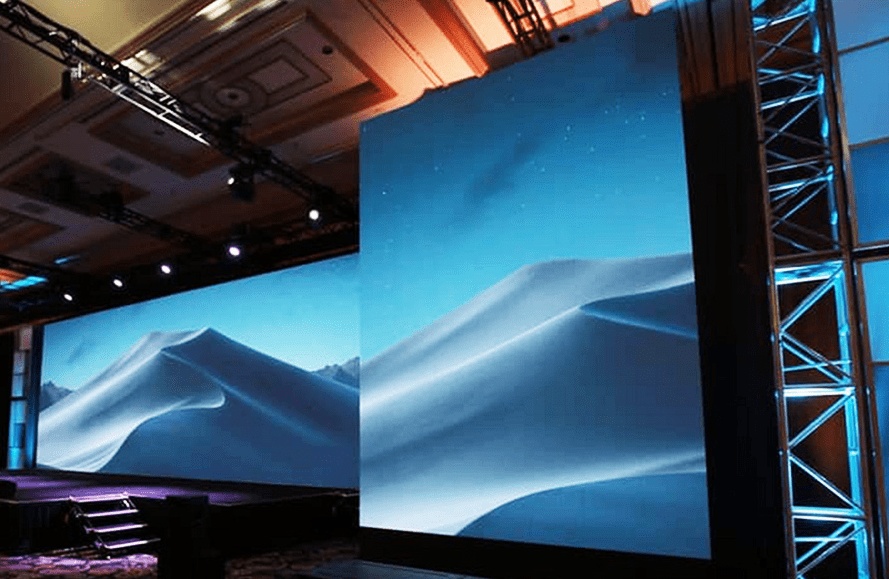

- Die-cast Aluminum: This appears in our KC and KL Rental LED Display series. Each piece weighs about 7kg and allows for smooth joining. Though pricier than steel, it cuts down on setup time and transport fees.
- Steel/Iron Cabinets: These fit outdoor fixed display setups (like our KR series). They hold up well and cost less for lasting Digital Out-of-Home billboards.
Control Systems and Processing
Prices cover sending boxes, receiving cards (such as Novastar or Colorlight), and video processors. In advanced customized jobs, 4K processors or 3D controllers add to the hardware bill. They create eye-catching 3D effects without extra gear.
Customized Solutions: Tailoring to Your Vision
A standard setup seldom fits business needs. Customized work is our strength at King Visionled. It means you pay only for what fits your plan.
Shape and Flexibility
Square screens set the base price. But if your building calls for a customized bend, a sphere “ball” LED display (KY series), or a shaped “Magic Cube” (KE series), extra design and board work raise the per-square-meter rate.
Brightness and Environment Adaptation
- Indoor Solutions: These handle 600–1200 nits.
- Outdoor Solutions: They need 4500–6500+ nits to show up in bright sun.
- Protection Levels: Our outdoor units come with IP65 waterproof and dustproof features. They stand up to tough weather, which lowers long-term ownership costs.
Operational and Installation Expenses
Figure out the full cost by adding setup and running fees to the buy price.
Labor and Installation Structure
A tall outdoor sign needs strong steel frames and skilled workers. An inside wall mount is easier. King Visionled supplies full-frame plans and technical support for smooth installation.
Energy Efficiency and Maintenance

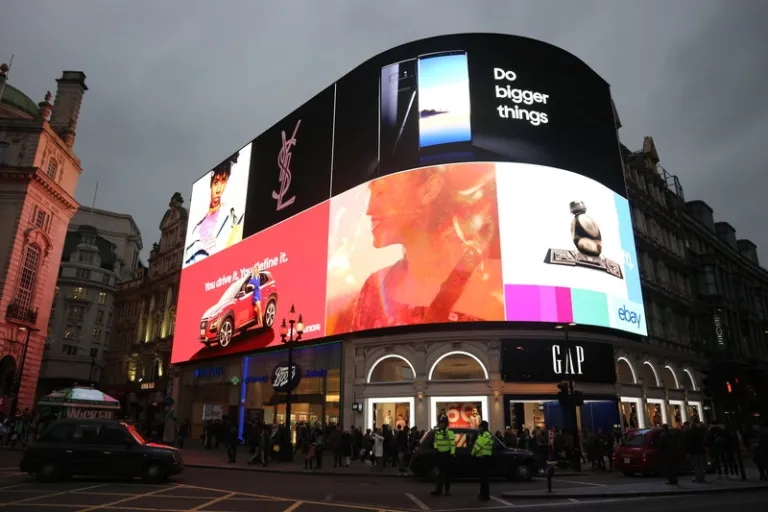

Our advertising LED displays use fresh modules that cut power use. In five years, such a screen might save thousands on electric bills. This brings down the real cost per square meter over time.
Application Scenarios and Solutions
These examples show how our gear fixes common issues in real settings.
Retail & Commercial Plazas
- Problem: Bright surroundings make old signs fade.
- Solution: Our customized transparent LED screens (KT series) let through up to 70% light. Fit them behind windows to keep the store light natural while showing clear 4K ads to passersby.
Corporate Events & Stage Rentals
- Problem: Long setup times raise worker costs.
- Solution: The KC Rental series has fast locks and front service access. 2-3 worker can set it up, which drops the cost per event.
Smart City & Transportation Hubs
- Problem: Outside spots demand round-the-clock work.
- Solution: Our Smart City Pole LED screens (KO series) include auto-brightness sensors and remote control over 4G/WiFi. They cut down on hands-on checks and fixes in city traffic spots.

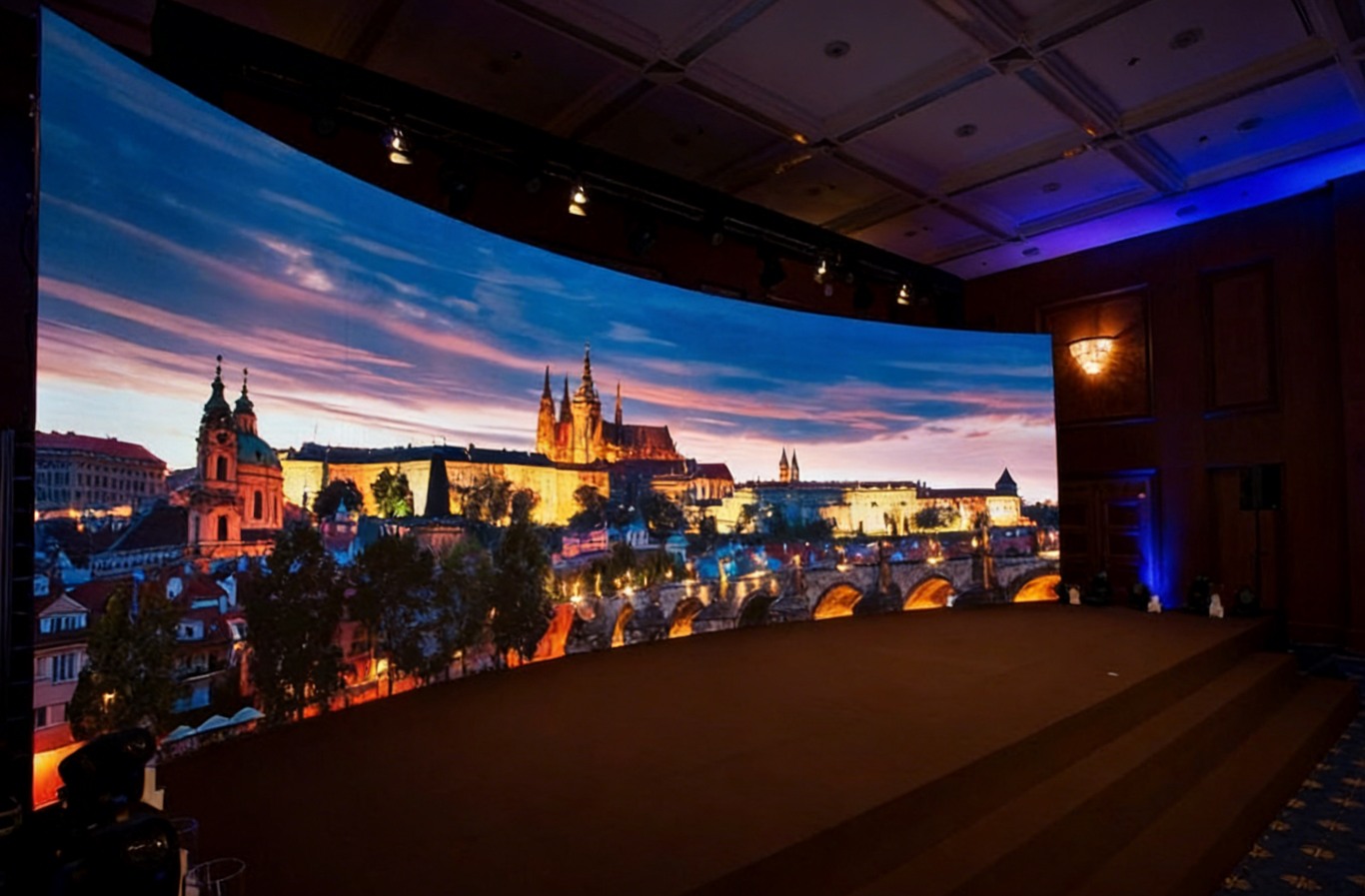

Why Partner with King Visionled?
Picking a supplier goes past the cheapest bid. It means teaming with a steady business ally.
- Quality Assurance: Every item passes strict burn-in tests and meets CE, FCC, and RoHS standards.
- Factory-Direct Pricing: Without brokers, we offer fair prices on top-grade parts.
Get a Professional Quote Today
Want to update your area with a customized LED video wall? Skip vague quotes. Reach out to the King Visionled team for a full cost review based on your project details.
- Email: admin@kingvisionledscreen.com
- WhatsApp/Mobile: +86 135 8011 5134
Contact King Visionled today for a free consultation and quote within 12 hours!
FAQ
Q: What is the average lifespan of an LED video wall?
A: Top LED walls rate for 100,000 hours. Real life depends on cooling and power flow. We add strong aviation connectors and aluminum builds to stretch this out.
Q: Can I upgrade my LED wall resolution later?
A: These walls use modules, so you cannot swap pixel pitch on old ones. But you can grow the wall size or switch to denser customized modules. Some frames might stay in use.
Q: How do I choose between Indoor and Outdoor models?
A: Key differences lie in brightness and protection. Outdoor types need at least 4500 nits and IP65 to handle rain and sun. Indoor ones stress color depth at softer light levels.
Q: How does the “refresh rate” affect the cost and performance of a stage LED wall?
A: Higher refresh rates (e.g., 3840Hz) increase the cost due to advanced driver ICs. However, they are essential for professional venues to prevent flickering on camera or mobile phone recordings, ensuring a smooth visual experience for both live and digital audiences.
